Duratrans C-type Printing Overview
Duratrans, or Fujitrans, also known as Durable Transparencies or Backlit Transparences, are prints produced using a translucent-base film. These are typically produced through a C-type process. They are optimal for use in lightboxes.
Advantages of Duratrans C-type Printing
Duratrans have a translucent base that allows controlled light diffusion, making them ideal for lightbox presentations.
Digital C-type printing technology, used to produce Duratrans, employs three lasers – red, green, and blue – merged into a single beam, direct to light-sensitive materials. This ensures a quality akin to traditional photographic methods but with the precision of digital control. Using this method, we can produce true continuous tone, sharp photographic images with edge-to-edge clarity and zero distortion in full colour or black and white, spanning up to 1219 mm (48 inches) in width.

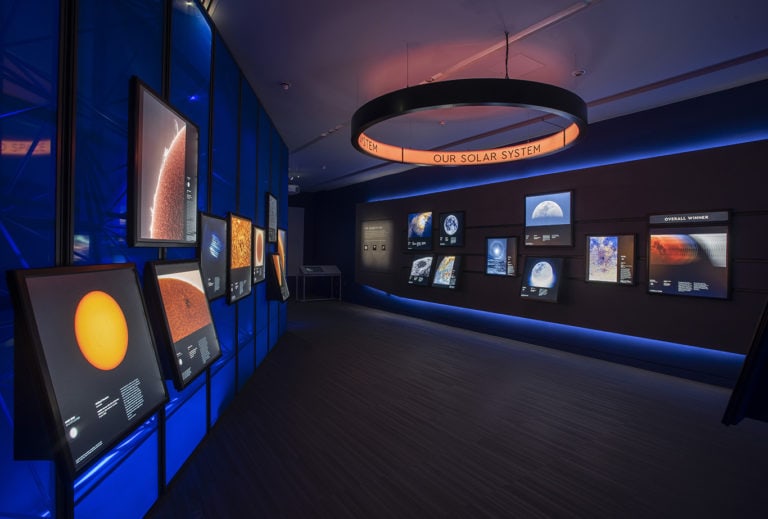

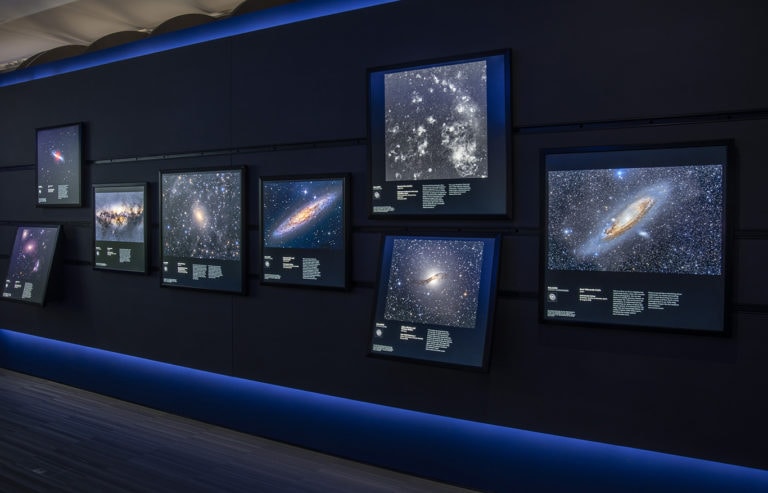

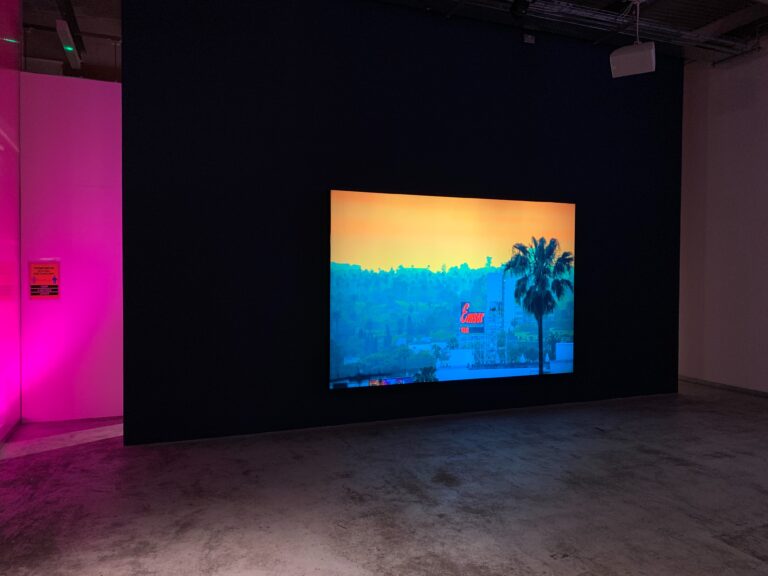

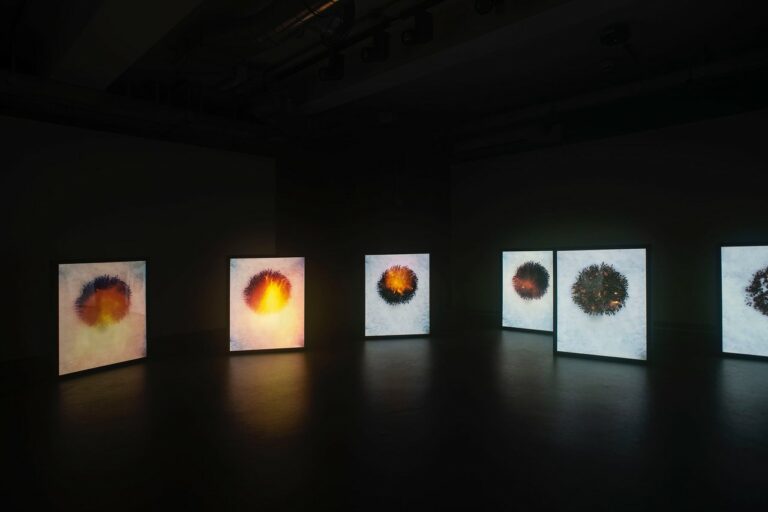

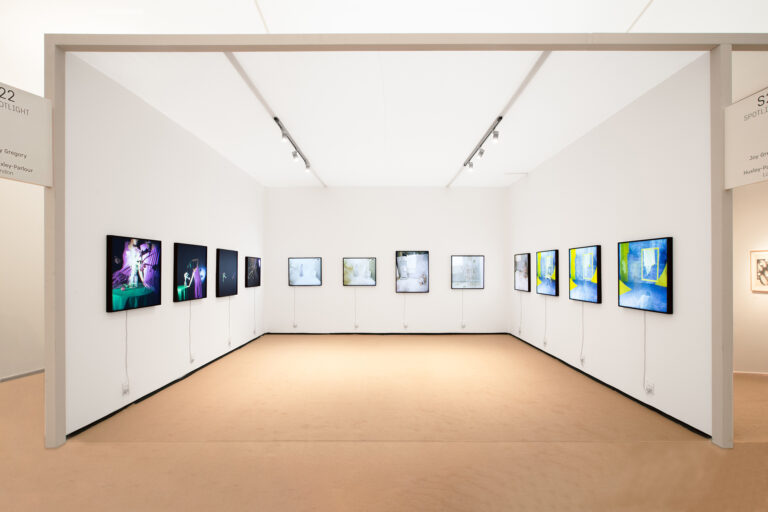

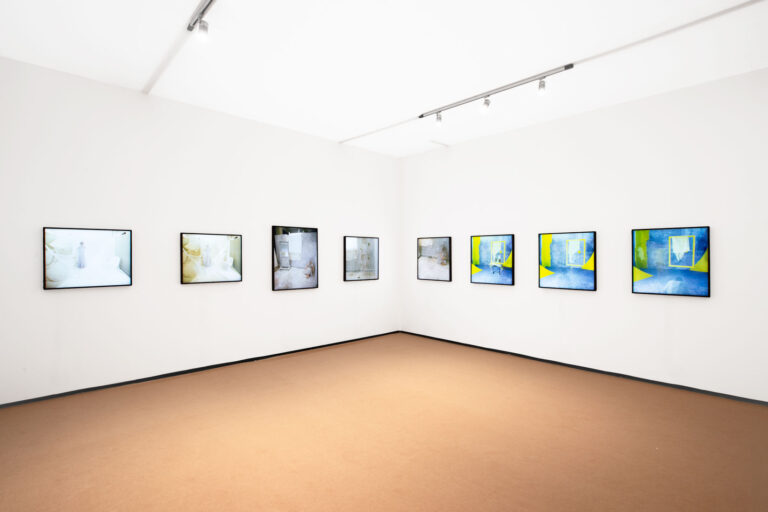

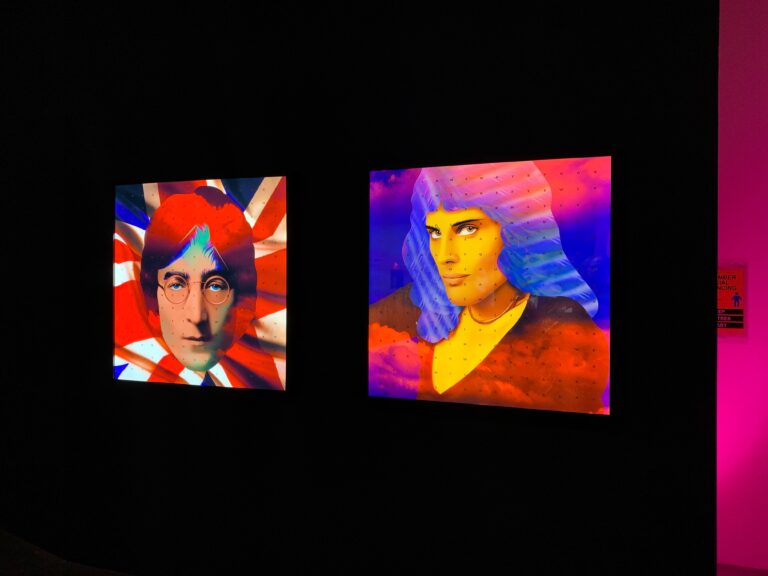

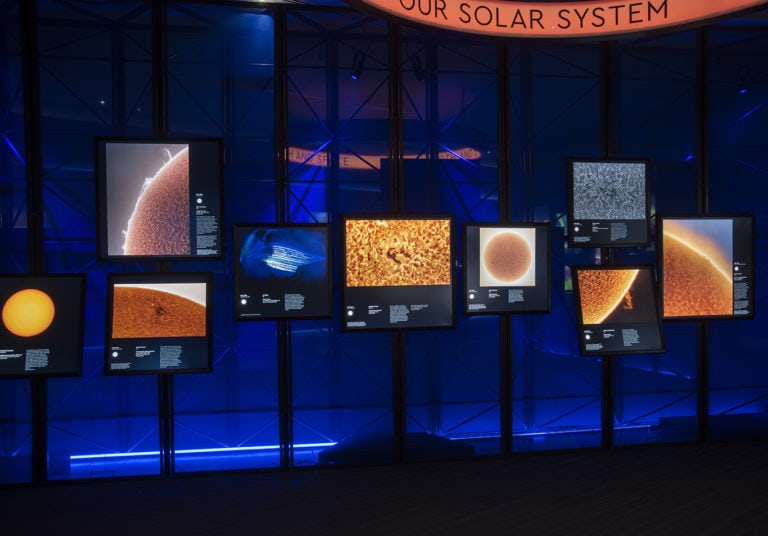

Lightboxes for Duratrans can also be made using your preferred mouldings from our collection of sustainable gallery-quality options certified by the FSC scheme. We use only the highest quality LED panels to illuminate all of our lightboxes – this gives us greater flexibility in the size we can produce and means that our lightboxes are evenly lit from edge to edge.
Why Choose Genesis for Duratrans C-type Printing?
Our service encompasses colour management, correction, border addition, resizing, cropping, and directed printing. The cost of our service includes test prints, underscoring our confidence in uncompromising quality. Our Durst Lambda C-type processor stands out with three wash tanks, enhancing archival stability beyond standard practices.
We also extend a 100% satisfaction guarantee to all of our services, pledging to either redo or refund should the outcome not fully meet your expectations.
Which Duratrans C-type Materials Do You Use?
Fujitrans Display Printing Material is a white translucent base colour print material produced for digital laser c-type printers to produce translucent colour display prints – often used in light boxes. Fujitrans offers an extremely wide range of gradiation setup and creates images with rich saturation across the entire colour spectrum and improved details reproduction over a large area.
Due to its PET (polyester) base, Fujitrans Display Printing Material produces prints with exceptional clarity that are superbly smooth and flat with a sharp, translucent gloss finish.
Fujiclear Display Material is a laser-exposure-optimised clear-base colour print material produced for digital laser c-type printers to produce transparent colour display prints. When exposed using laser light on laser printers (such as our Durst Lambda digital C-type printer), the material produces high-quality transparent colour prints with natural and more vibrant colour reproduction of red, green, blue and yellow, resulting in a high chroma finish.
Due to its PET (polyester) base, Fujiclear Display Printing Material produces prints with exceptional clarity that are superbly smooth and flat with a sharp, transparent gloss finish.
Over 25 Years at the Forefront of Exhibition Production
In this video, we look behind the scenes to explore the variety of work we produce and some of the diverse range of clients we cater to. Offering a glimpse into the intricacies of our operations, we highlight the extensive print, mounting, and finishing services that define our commitment to quality and innovation.
What makes us so special?
Genesis Imaging Price List
Click below for our Professional Printing and Mounting service price guide.
For queries about Framing, please contact our Client Service team who will happily provide you with a quote.
Get in touch
Looking for more information, have a question, or need help ordering? Our team would love to hear from you!
As with our all of our printing services, we aim to turnaround print orders within 48 hours of your order being confirmed by a member of our Client Support Team. Turnaround times may be longer when a test print is required. Please speak to us to confirm turnaround times on large print orders or when working to tight deadlines.
Our preferred choice of colour profile for the best possible photographic printing with our very carefully controlled ICC workflow is Adobe RGB (1998), although we do accept files in other colour profiles- if in doubt, please do not hesitate to give us a call on 020 7384 6200.
You can also download our Lambda Profile to see a fairly accurate softproof preview of the printed output on your screen (if your monitor is properly calibrated). We calibrate our Lambda Colour Profile frequently so please download the latest version from the link above.
After downloading the profile of your choice simply drop it into the following folder on your mac – / Library / ColorSync / Profiles folder or the / Users / username / Library / ColorSync / Profiles folder. Then restart Photoshop, open your image and choose from the top menu Edit > Assign Profile. In the dialogue box that appears select the Lambda profile from the Profile drop menu. This temporarily assigns the Lambda profile to the image without converting colours to the profile space. You can permanently assign the Lambda Profile to your image by choosing from the top menu Edit > Convert to Profile and then from the dialogue box that appears choose the Lambda Profile from the Destination Space Profile drop menu.
For PC users the path to place the Lambda profile in is WINDOWS system32 spool drivers colour folder.
If you have any questions about colour profiles please feel free to call and one of our friendly and knowledgeable staff will be pleased to help you.
As a general guide for colour prints on either our Giclée or Lambda printers, your images should be in RGB, any layers flattened and preferably saved as a Tiff file (.tif) with LZW compression. This will maximize the quality of your image and also keep the file size down. Other file formats are acceptable such as a layered tiff or photoshop document (.psd) but these will have an inherently larger file size. Jpegs (.jpg) are fine for smaller prints but because of their image lossy nature it is not recommended that you save any files in this format. Images shot as in-camera Jpegs are once again mostly suited to small to medium prints. Naturally we are also happy to accept RAW camera files.
Once again, please do not hesitate to get in contact if you have any questions about file formats for photographic prints.
We check all files prior to printing and will call you should we notice any loss of quality at the print size you require.
As a rule of thumb – the larger the print size required, the larger the file size must be. There is however some leeway with the image resolution or dpi and how our Giclée or Lambda printers deal with this. For instance: if your image file is approximately 20MB at 400 dpi it will make an excellent print at A5 size. The same 20MB file will still make an excellent 10×8” print at 300 dpi, and a very good 16×12” print at 200 dpi. If you are in any doubt, go for a higher resolution for the print size required. Please contact us if you need any further assistance with file sizes for photographic prints.
Print size varies depending on the service used and the chosen paper type (some Giclée papers are simply not available in full width). As a guide;
Lambda C-type prints can be produced in sizes up to 48 inches in width and up to the length of an entire roll – which is a massive 1,968 inches.
Giclée prints are available in sizes up to 60 inches wide, and just about any length you desire.
Using Direct to Media printing, the largest single sheet size we can print is 2 x 3m, or just over 78 x 118 inches. We do have the capacity to print larger than this, roll to roll (so using banner material or other flexible materials).
The largest size we can produce ChromaLuxe fine art prints is 70” x 40”.
To order a test strip, please upload your image via our upload form and specify the size of your final print. This helps us to ensure that the image we take the test print from is at the correct size for the best representation of the final outcome. Test prints are produced as a full-size section of your image, not the whole thing – if you have a particular part of your image which you’d like to see on your test print, please let us know.
They can! We ship internationally, using a range of couriers, and can wrap and pack your test prints either rolled or flat depending on the size of your test and/or your preference. Once received, we can liaise with you over the phone for any amendments – to make sure your final print is exactly as you expect.
We believe the relationship between the artist and the team at the final stages of production is what makes outstanding images into memorable showpieces. For this reason, our premier printing services include one-to-one time with our expert printing team to view your files on colour-corrected monitors. Checks with our expert printing team include the following:
Other minor edits
To ensure your work is exactly as you envision, we provide free test prints for our printing services. Please request these at your time of ordering. Turnaround times are subject to test approval.
Yes! With clients around the world, we’ve shipped our clients work Internationally and can advise and quote on delivery options to suit your requirements. Our bespoke crating is ideal for large items and international delivery – ensuring your work is packaged to perfection and protected until it reaches its destination.
